Brand Name : HJY
Model Number : P8
Certification : CE FCC
Place of Origin : China
MOQ : negotiable
Price : negotiable
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 1000sqm/month
Delivery Time : 15-20 days after receiving deposit
Packaging Details : Wooden case or flight case
Module size(mm) : 256*128
Module Resolution(dots) : 32*16
Brightness(cd/m²) : 6000
Viewing Angle(degree) : ≤120°
Scan Mode : 1/4
Warranty : 2 years

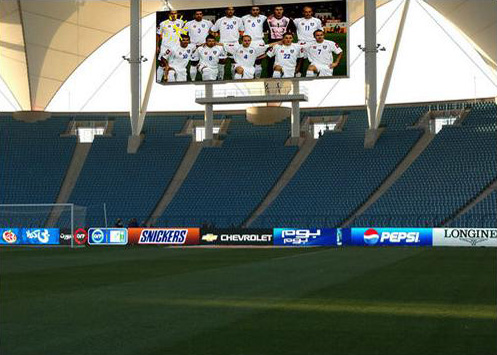

P8 stadium led screen high brightness electronics sport perimeter led display
Product parameter
| No. | Item | P8 |
| 1 | Pixel pitch | 8mm |

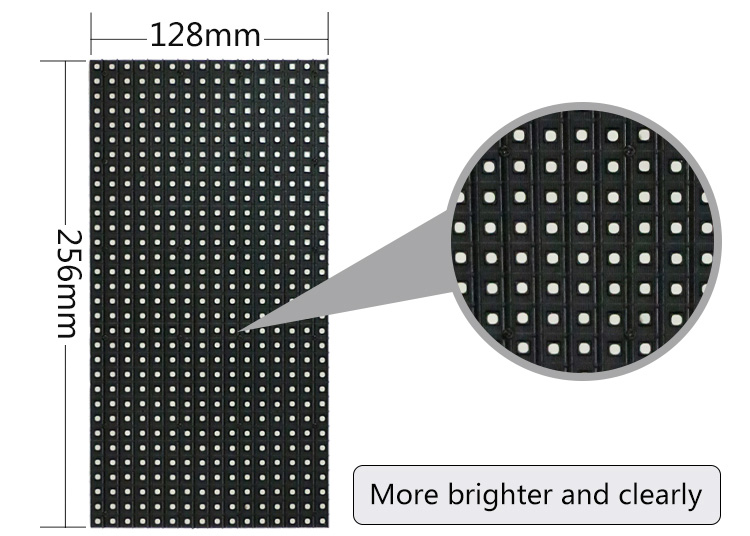

| 2 | Module size | 256mm*128mm |
| 3 | Module resolution(dots) | 32*16 |
| 4 | Pixel configuration | 1R1G1B |
| 5 | Pixel density | 15625dots/m² |
| 6 | Colors | full color |
| 7 | Best viewing distance | ≥8m |
| 8 | Horizontal view angle | 120° |
| 9 | Maximum power consumption | <650W/m² |
| 10 | Brightness | ≥8000cd/m² |
| 11 | Driving method | 1/4 scanning |
| 12 | Frame frequency | 60Hz |
| 13 | Refresh frequency | ≥1920Hz |
| 14 | Working voltage | AC220V/110V±10% |
| 15 | IP grade | IP65 |
| 16 | Life span | >100,000 hours |
FAQ
Q1: Can I have a sample order before purchase?
Yes, we welcome sample order to test and check quality
Mass production time needs 15-20 days based on order quantity
Yes, we offer 2 years warranty to our products.
Product image


|
|
Electronics Sports Perimeter LED Display , Stadium Display Screen 120° View Angle Images |
